Almaz-102






Produced: 1979-1984
Name: „Алмаз-102“
Producer: Lomo
Frame size: 24x36 mm.
Lens: MC Volna-4  1.4/50.
Shutter: 1s-1000s + Bs.

Quantity: 63 units.


Original price - 570 roubles (1983).

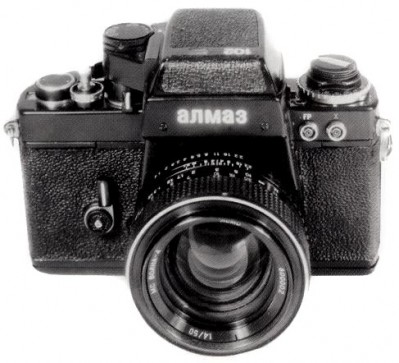

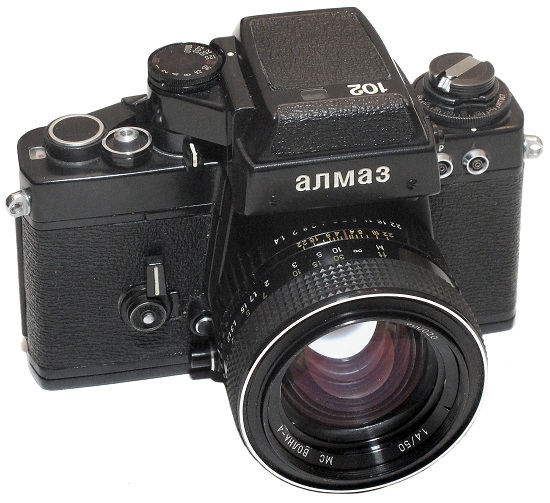

PK6930 - Almaz-102  #8400491.





Below you will find all known versions of this ultra rare camera. Any additions or suggestions are always welcomed!









PK6905. Prototype of the particular camera. Released in 1979, under name "Lomo Almaz-102". Camera without serial number, with a mysterious extra little button on the finder housing. No contacts for motor drive attachment yet. No "LOMO" markings on the rear plate yet. Fitted with fast Volna-4 1.4/50 lens #7900XX.  Camera opposite comes from private collection in Europe.


PK6910. Camera identical to PK6905, but with "Almaz" markings on the frontplate already. At least one camera is known to exist in collections.

PK6910 - Almaz-102 prism fragment.

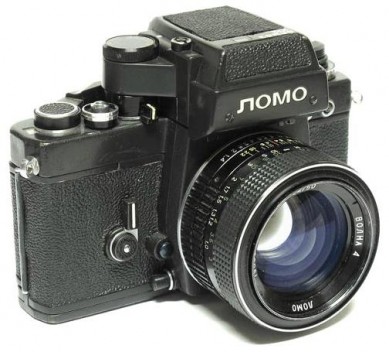

PK6905 - Almaz-102 prototype camera.





PK6912. Camera identical to PK6905, but with regular prism already. Contacts for motor drive on the bottom plate. Big "LOMO" markings on the rear plate. "Almaz" markings stamped on body above the lens. Serial number engraved inside the body. Old style of film memo disk yet (see picture below).

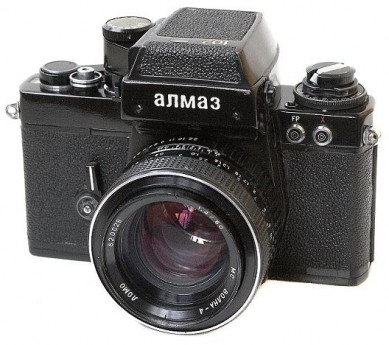

PK6912 - Almaz-102 camera.





PK6915. Camera identical to PK6912, but with prototype "Lomo-102" prism again. Big "LOMO" markings on the rear plate. "Almaz" markings stamped on body above the lens. Serial number engraved inside the body. Lens fastening knob on the frontplate is more natty now. New design of film memo disk (totally black now). An only so far known camera has s/n #800015 (SovietCams). Fitted with fast Volna-4  1.5/50 lens #800007.

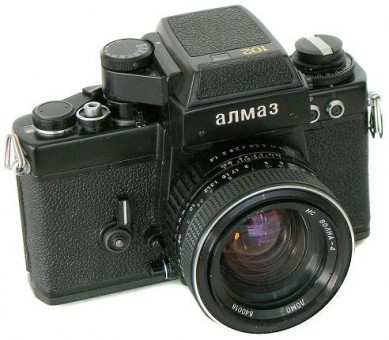

PK6915 - Almaz-102  #800015.





PK6920. Camera identical to PK6912, but with new design of film memo disk (totally black) already. Slightly changed form of shutter speeds disk. "Almaz" markings on the frontplate, "102" markings on the top. Lens fastening knob on the frontplate is more natty again (see picture below).

Camera opposite from private collection in Russia.

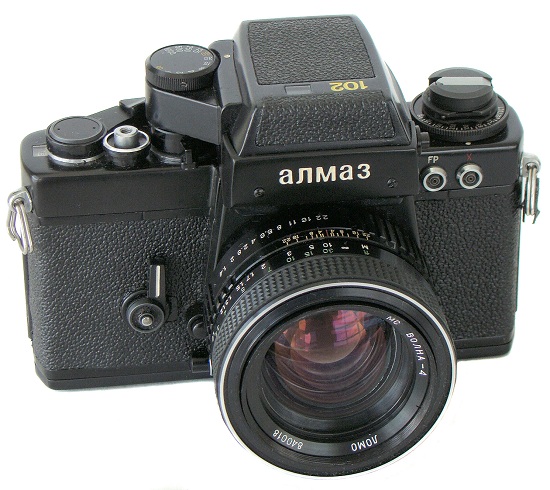

PK6920 - Almaz-102  #800005.





PK6925. So called "productional" version of the particular camera. No more "Almaz" stamped on body. Regular prism. Big markings "Lomo" stamped on the rear plate (see picture below). Very few cameras released in 1983-1984.


Camera #8300368 from Alexey Nikitin (Russia) collection.



PK6925 - Almaz-102  #8300368.





PK6930. The latest known "productional" version of Almaz-102 camera. Identical to K6925, but with regular "Lomo" logotype on the rear plate (see picture below). Very few cameras released in 1983-1984.

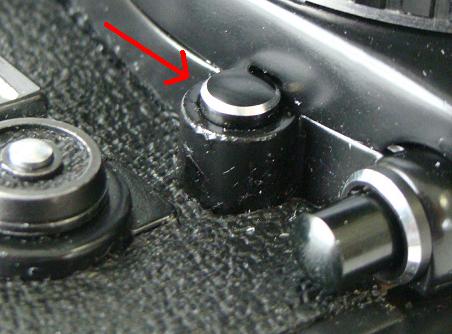

PK6930 - Almaz-102  #8400491.

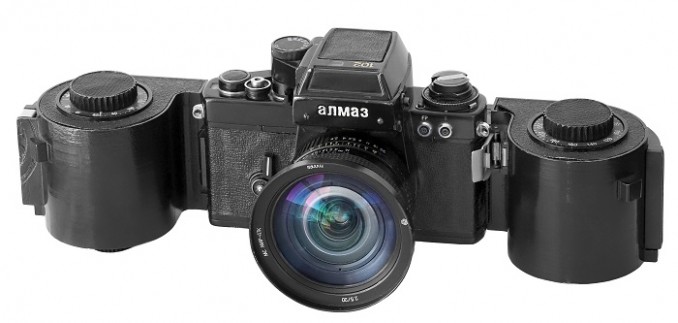

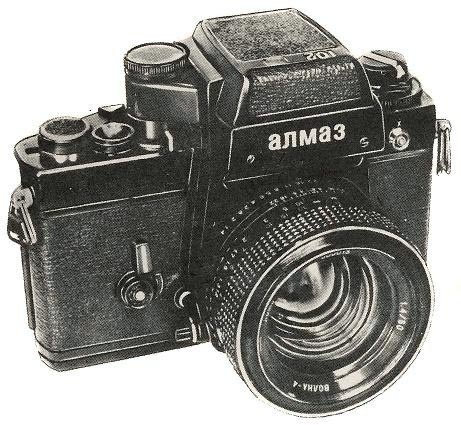

PK6930 - Almaz-102 camera with ultra rare removable "Reporter" attachment from SSK book "1200 cameras from USSR".
